Behavior

Current page indicator

When a visitor is viewing a page that is part of the secondary navigation IA, a red bar will appear above the corresponding menu or link. External links will not display the top red bar (except on hover) because they direct visitors to a new tab or window when selected.

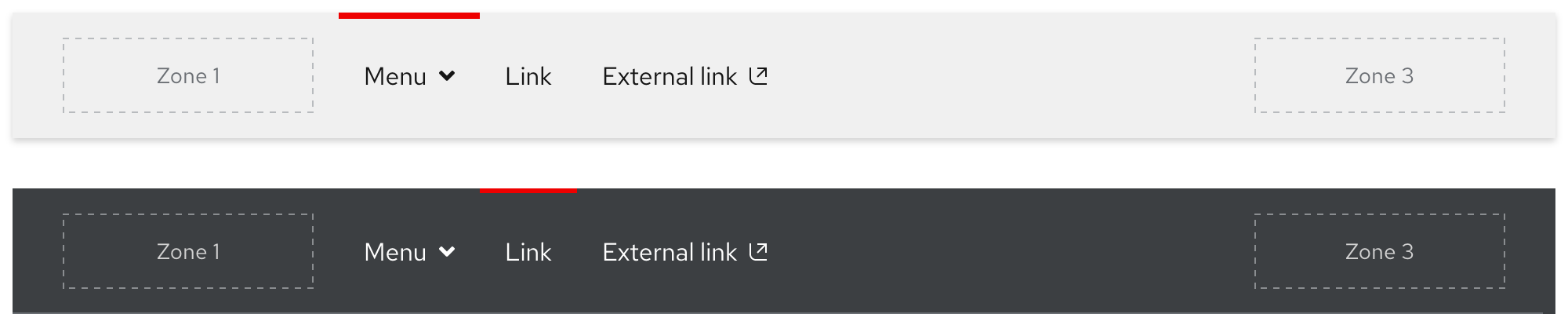

Secondary navigation - current page indicator

Scrolling with primary navigation

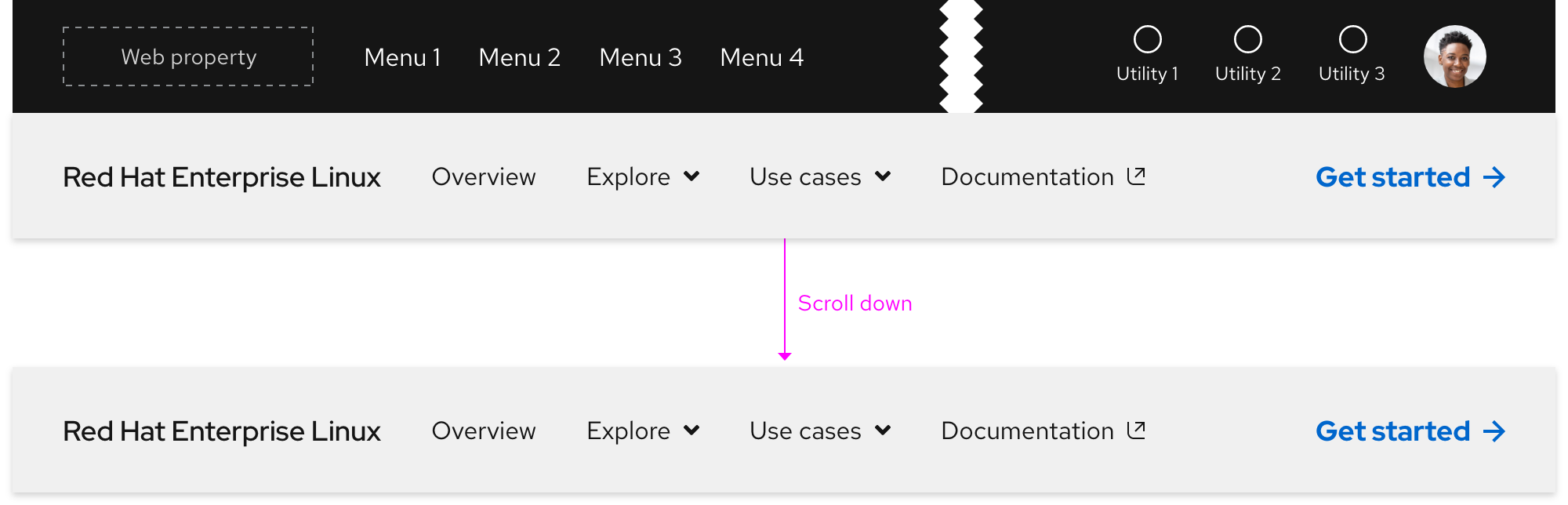

When the secondary navigation is used in conjunction with the primary navigation, it is positioned underneath. When a visitor scrolls down, the primary navigation will disappear and the secondary navigation will remain sticky.

Secondary navigation - scrolling with primary navigation (down)

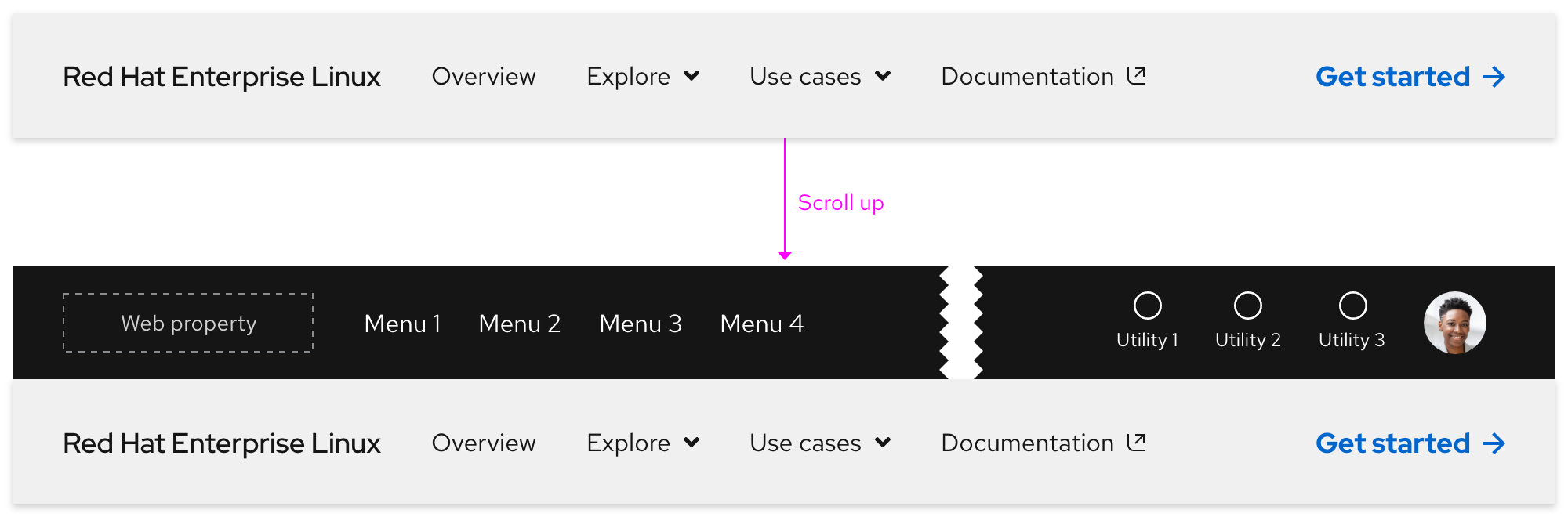

When a visitor scrolls to the top of the page, the secondary navigation will reset underneath the primary navigation.

Secondary navigation - scrolling with primary navigation (up)

Scrolling with expandable tray

If the height of the expandable tray is shorter than the viewport, content will scroll underneath.

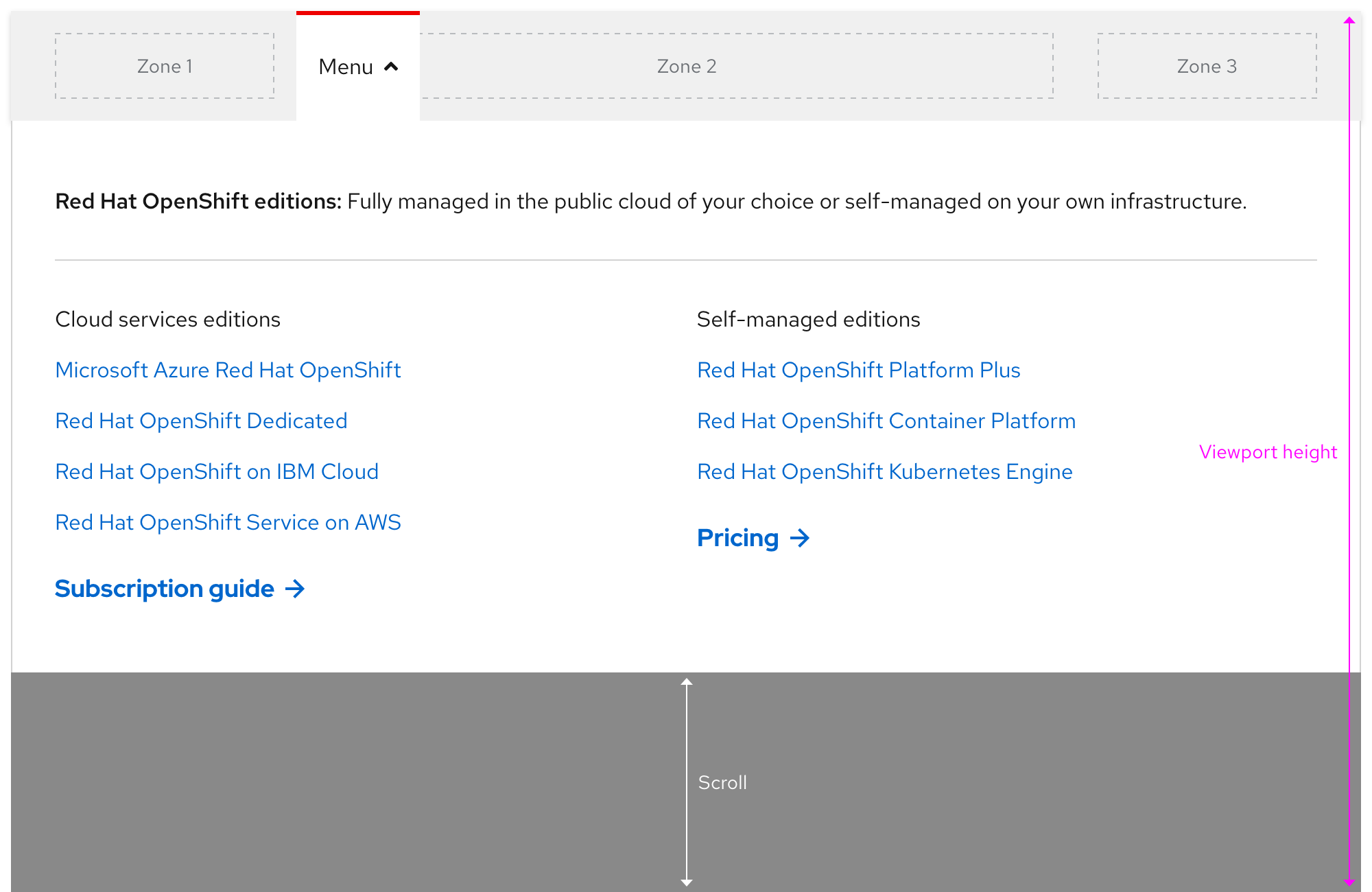

Secondary navigation - scrolling with expandable tray

If the height of the expandable tray is taller than the viewport, the tray will scroll instead.

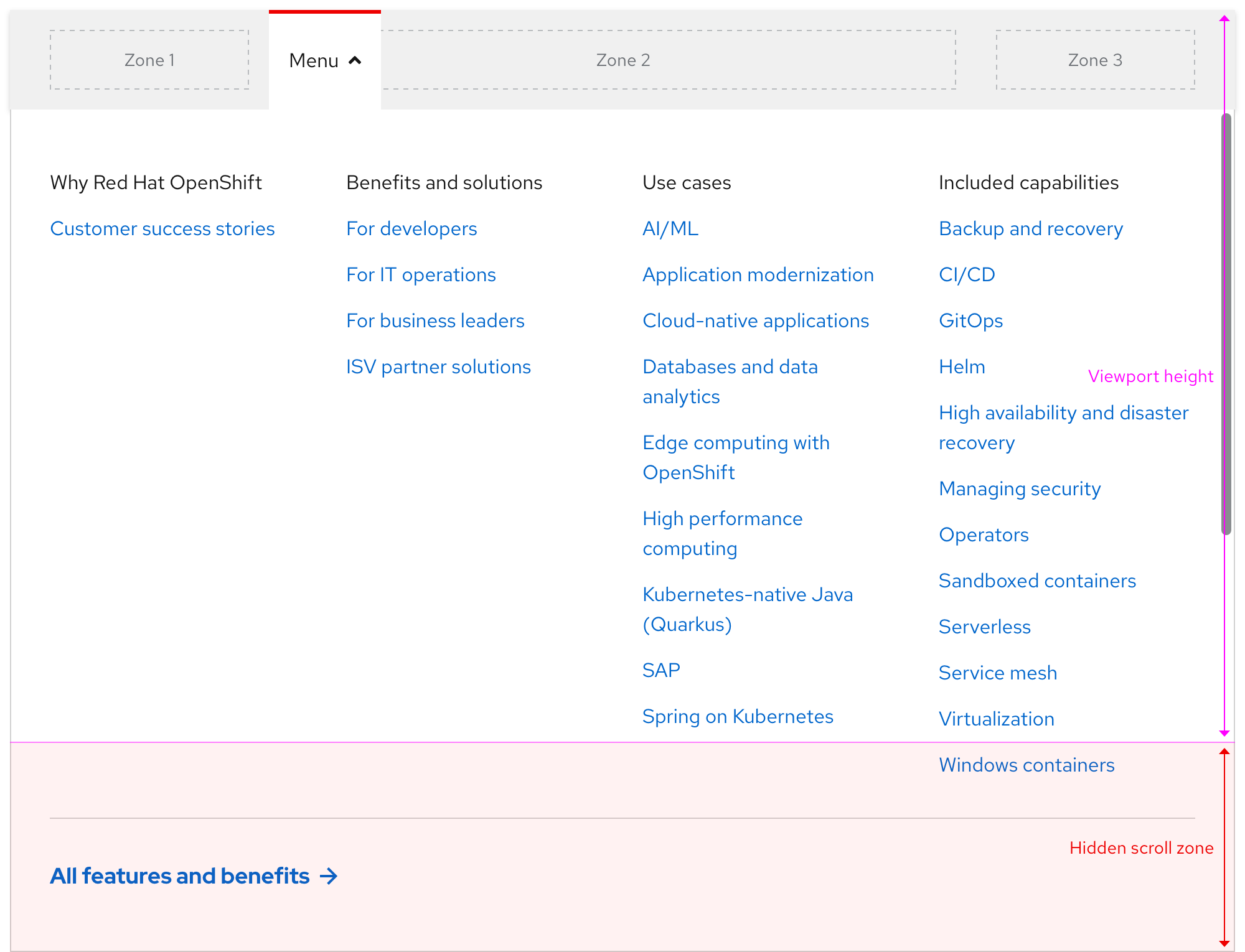

Secondary navigation - scrolling with expandable tray scroll

Only one expandable tray can be expanded at a time and there is no animation when navigating from one tray to the next.

Secondary navigation - navigating between trays

Collapsing the expandable tray

Clicking or tapping anywhere outside of the expandable tray should collapse it. Pressing the esc key should collapse the expandable tray as well.

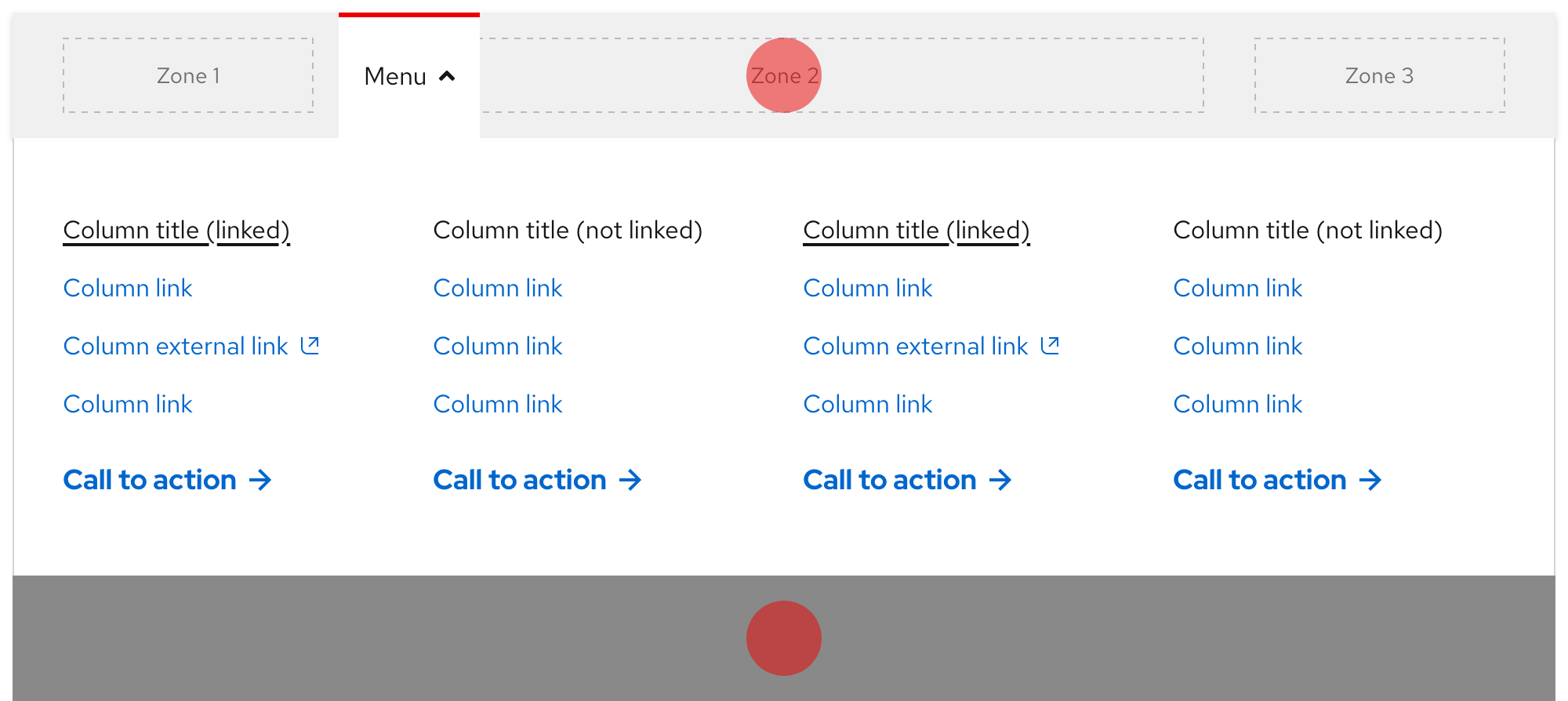

Secondary navigation - collapsing the expandable tray

Additional behaviors

Keep in mind the following additional behaviors:

  • The expandable tray should not collapse or expand without user input by mouse or keyboard
  • Scrolling while the expandable tray is visible should not close the tray

Interaction states

Default

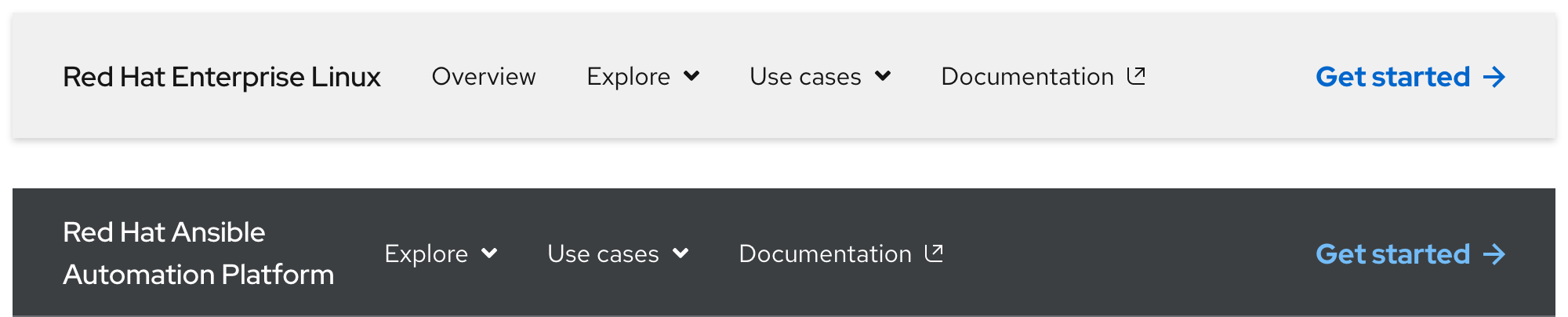

Secondary navigation - default interaction state

State Element Styling
Default (light theme) Product name text RH Display, Medium / 18px, 27 (1.5) / #151515
Default (light theme) Menu/link text and icons RH Text, Regular / 16px, 24 (1.5) / #151515
Default (dark theme) Product name text RH Display, Medium / 18px, 27 (1.5) / #fff
Default (dark theme) Menu/link text and icons RH Text, Regular / 16px, 24 (1.5) / #fff
Default (all themes) Call to action text See the Call to action page for specs

Hover

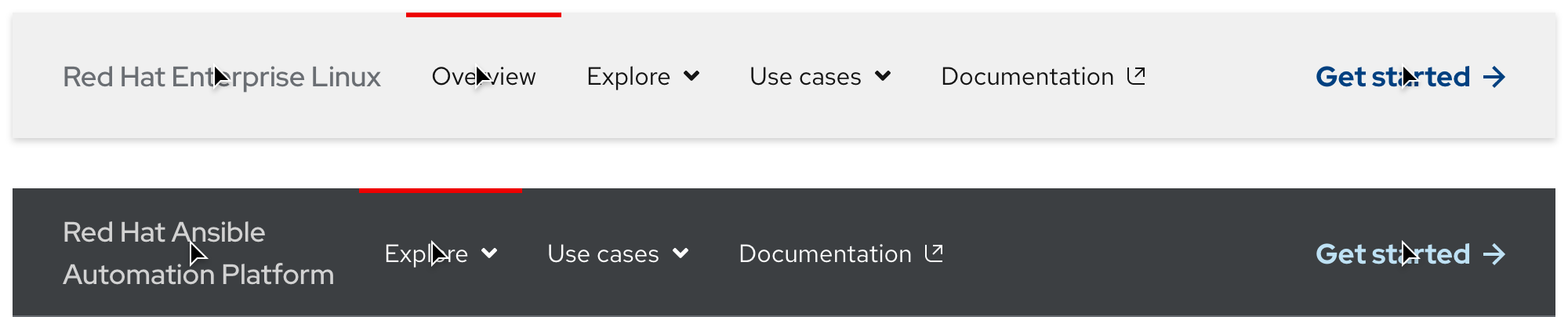

Secondary navigation - hover interaction state

State Element Styling
Hover (light theme) Product name text #6a6e73
Hover (dark theme) Product name text #d2d2d2
Hover (all themes) Menu and link top bar #e00 / 3px thickness
Hover (all themes) Call to action text See the Call to action page for specs

Focus

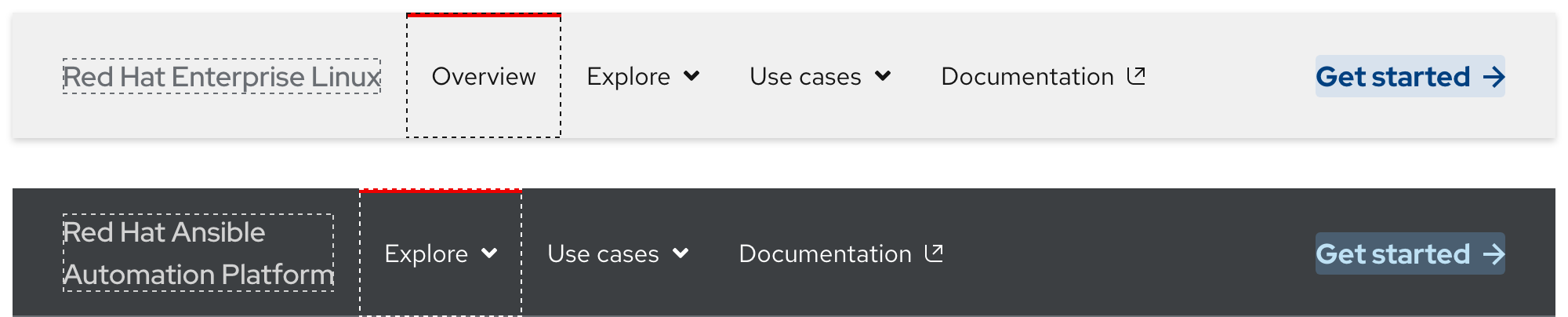

Secondary navigation - focus interaction state

Helpful tip

The focus state carries over styles from the hover state and also adds a focus indicator.

State Element Styling
Focus (light theme) Zone 1 #6a6e73, dashed, 1px border width
Focus (light theme) Zone 2 #151515, dashed, 1px border width
Focus (dark theme) Zone 1 #d2d2d2, dashed, 1px border width
Focus (dark theme) Zone 2 #151515, dashed, 1px border width
Focus (all themes) Zone 3 (call to action) See the Call to action page for specs

Active

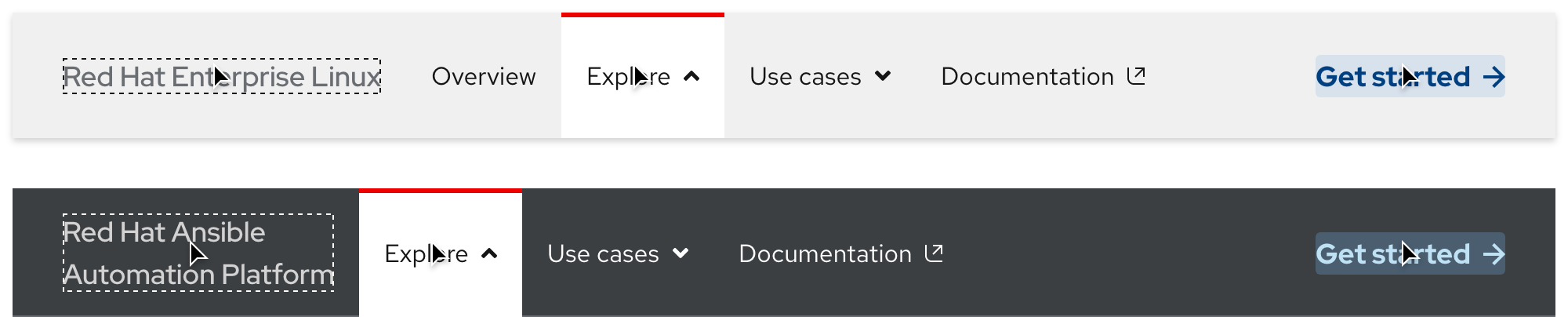

Secondary navigation - active interaction state

State Element Styling
Active (all themes) Tab top bar #e00 / 3px thickness
Active (all themes) Tab background #fff
Active (all themes) Menu text and icon RH Text, Regular / 16px, 24 (1.5) / #151515
